TecniqSKU K10-0CB0-1

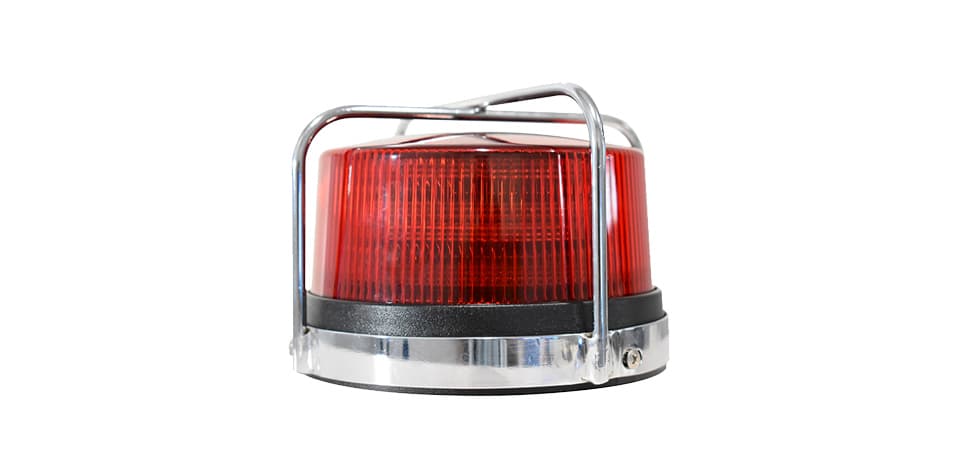

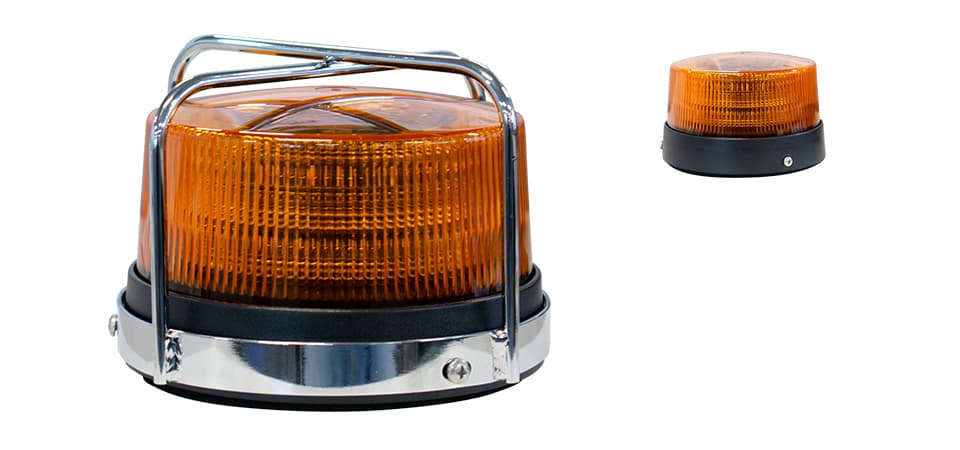

K10 Chrome Brush Guard
- -
- Livraison gratuite au Canada dès 200,00 $ avant taxes.
- Couvert par la garantie Arenco.
Spécifications techniques
- Nombre de DEL
- 24
- Couleur
- Red • Amber • Green • Blue • Green/Amber
- Tension
- 12/24 VDC
- Courant
- Hi - ≈0.7A (average) – 1.7A (peak) Lo - ≈0.17A (average) – 0.3A (peak)
- Connecteur
- -
- Raccordement
- 8.5" pigtail
- Montage
- Surface or Pole Mount (1" NPT width)
- Filage
- Flasher Red Wire - High Intensity Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) White Wire - Flash Pattern Change Blue Wire - Wig-Wag wire Connect to power for opposite phase Single Flash Red Wire - High Intensity Black Wire - Ground Yellow Wire - Low Intensity
- Dimensions
- 7.04" diameter x 4.6" Tall (with brush guard)
- Emballage standard
- 1
