TecniqSKU K40-1B00-1

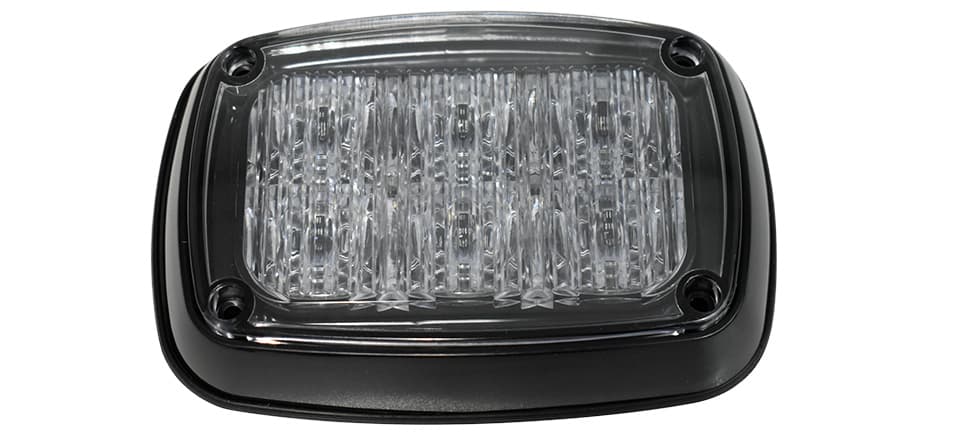

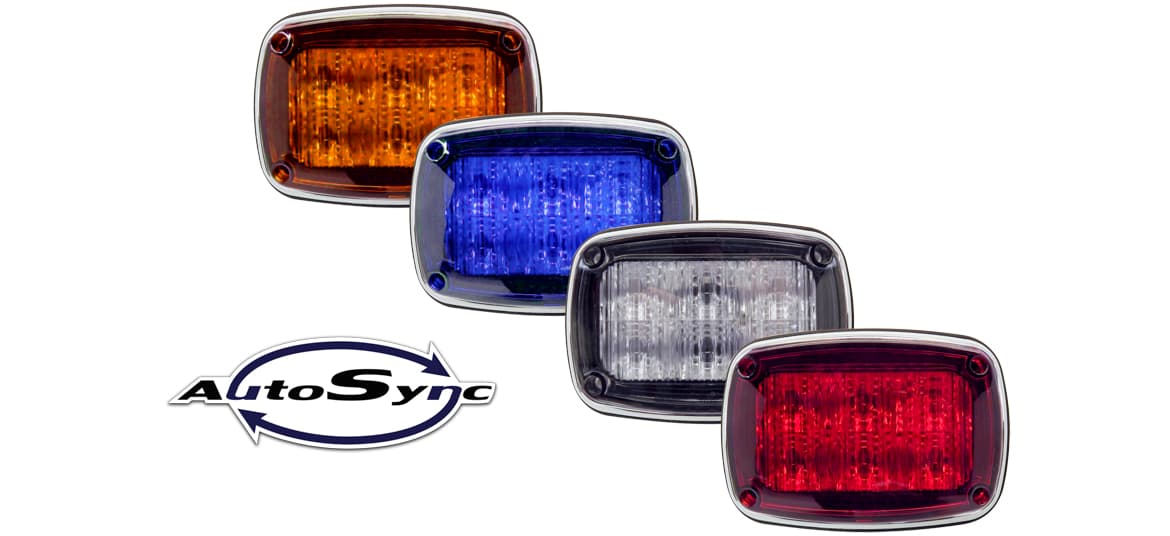

K40 Black Trim and Gasket Kit
- -
- Livraison gratuite au Canada dès 200,00 $ avant taxes.
- Couvert par la garantie Arenco.
Spécifications techniques
- Nombre de DEL
- 6
- Couleur
- Red • Amber • Green • Blue • White • Red/White • Red/Blue • Blue/White • Red/Amber • White/Amber
- Tension
- 9-14VDC
- Courant
- ≈1.1A (average) – 2.2A (peak)
- Connecteur
- -
- Raccordement
- 9" pigtail
- Montage
- Surface mount using just (4) screws (included)
- Filage
- AutoSync Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (Night Mode) White Wire - Flash Pattern Change Blue Wire white stripe - Wig-Wag wire (AutoSync) Connect to power for opposite phase Stop/Tail/Turn & Steady Burn Flasher Red Wire - 12V DC Power Black Wire - Ground Yellow Wire - Low Intensity (STT etc.)
- Dimensions
- 6"x 4.25"x 1.1"
- Emballage standard
- 1
