LED MKR/OUTLINE OBLG ADR W/CLR MV
- Livraison gratuite au Canada dès 200,00 $ avant taxes.
- Couvert par la garantie Arenco.
Pourquoi ce produit
168-09 bracket mounts 2268 lights on 1.125" (29 mm) centers.
2 diodes.
2268A-R-MV has 2.5 meter leads. 2268A-R-MV-BT2 has 200 mm leads.

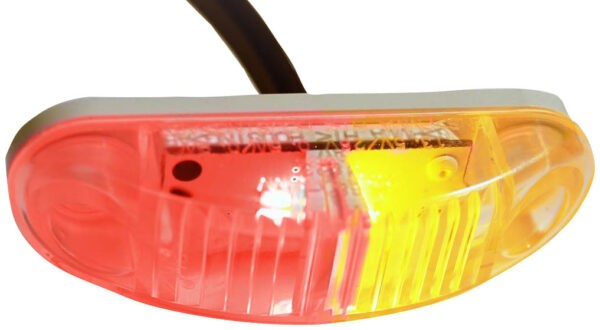

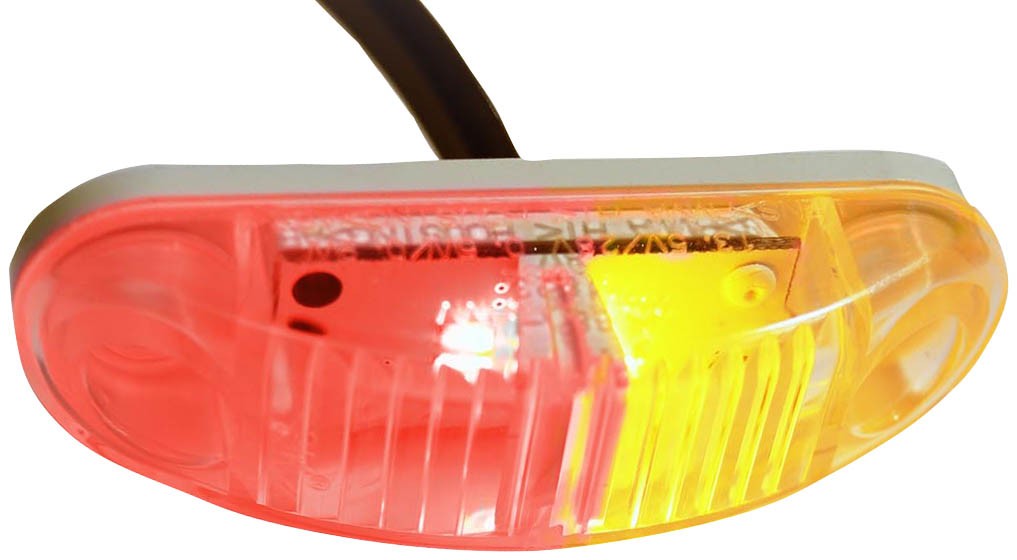

Amber and red diodes behind clear lens
Certified to applicable ADR (Australian Design Rules) regulations. NOT ECE COMPLIANT
Clear lens with colored light.
Flat-wire sheathed cable for simplified crimp connections, less bulk.
Hardwired design features 18-gauge leads.
Hardwired design.
Low profile, narrow surface-mount design suits narrow rails.
Meets IP67 ingress rating.
Multi-volt design is compatible with both 12 and 24 volt systems.
Multiple mounting hardware options.
Multivolt version available.
Recommended fastening: 4 mm screw.

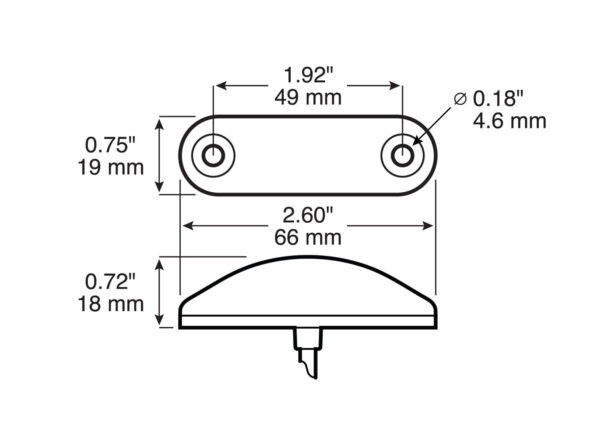

See Peterson Master Catalog pages 178-179 for bracket and bezel dimensions.
Welded rear housing, advanced surface-mount diodes, and more precise separation between red and amber illumination.
Spécifications techniques
- Couleur
- Amber + Red
- Nombre de DEL
- 2
- Tension
- 12V / 24V
- Montage
- Surface
- Lentille
- Clear
- Certifications
- ADR
- Bulb Technology
- LED
- Shape
- Oval
