TecniqSKU E45-ALU0-1

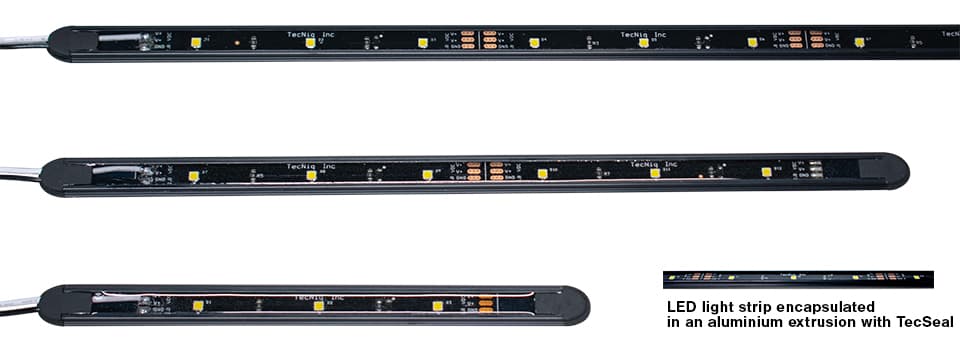

Mounting Channel
- 150 lm
- Livraison gratuite au Canada dès 200,00 $ avant taxes.
- Couvert par la garantie Arenco.
Spécifications techniques
- Flux lumineux
- 150 lm - 7" standard 300 lm - 11.5" standard 750 lm - 25" standard 1500 lm - 47.5" standard 1800 lm - 56.5" premium 300 lm - 7" premium 600 lm - 11.5" premium 1500 lm - 25" premium 3000 lm - 47.5" premium 3600 lm - 56.5" premium
- Angle de faisceau
- E45SlimLight_Angle.jpg
- Nombre de DEL
- 3 / section (standard) 6 / section (premium)
- Flux lumineux
- 150 lm - 7" standard 300 lm - 11.5" standard 750 lm - 25" standard 1500 lm - 47.5" standard 1800 lm - 56.5" premium 300 lm - 7" premium 600 lm - 11.5" premium 1500 lm - 25" premium 3000 lm - 47.5" premium 3600 lm - 56.5" premium
- Couleur
- White
- Angle de faisceau
- E45SlimLight_Angle.jpg
- Tension
- 9-14VDC
- Courant
- 0.08A – 7" standard 0.16A – 11.5" standard 0.40A – 25" standard 0.80A – 47.5" standard 0.96A – 56.5" standard 0.16A – 7" premium 0.32A – 11.5" premium 0.80A – 25" premium 1.60A – 47.5" premium 1.92A – 56.5" premium
- Raccordement
- 9"
- Montage
- Mounts with snap on vertical or horizontal clips
- Filage
- White Black - Ground White - Positive RGB+W Black Wire - 12VDC Power White Wire - Ground (White) Red Wire - Ground (Red) Green Wire - Ground (Green) Blue Wire - Ground (Blue)
- Dimensions

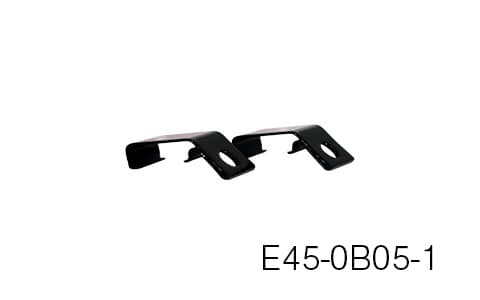

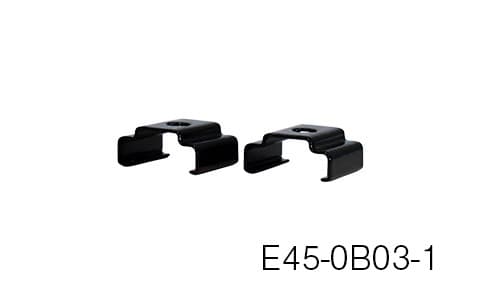

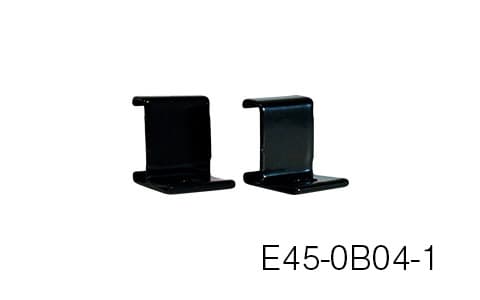

- 0.55"x 0.23"x 7.0" (E45-W010-1 / E45-WBP01-1) 0.55"x 0.23"x 11.5" (E45-W020-1 / E45-WBP02-1) 0.55"x 0.23"x 25.0" (E45-W050-1 / E45-WBP05-1) 0.55"x 0.23"x 47.5" (E45-W100-1 / E45-WBP10-1) 0.55"x 0.23"x 56.5" (E45-W120-1 / E45-WBP12-1) Mounting Clips (E45-0B03-1 / E45-0B04-1 / E45-0B05-1)
